Blue Sea 7042 187-Series Circuit Breaker - Panel Mount 80A
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$125.99

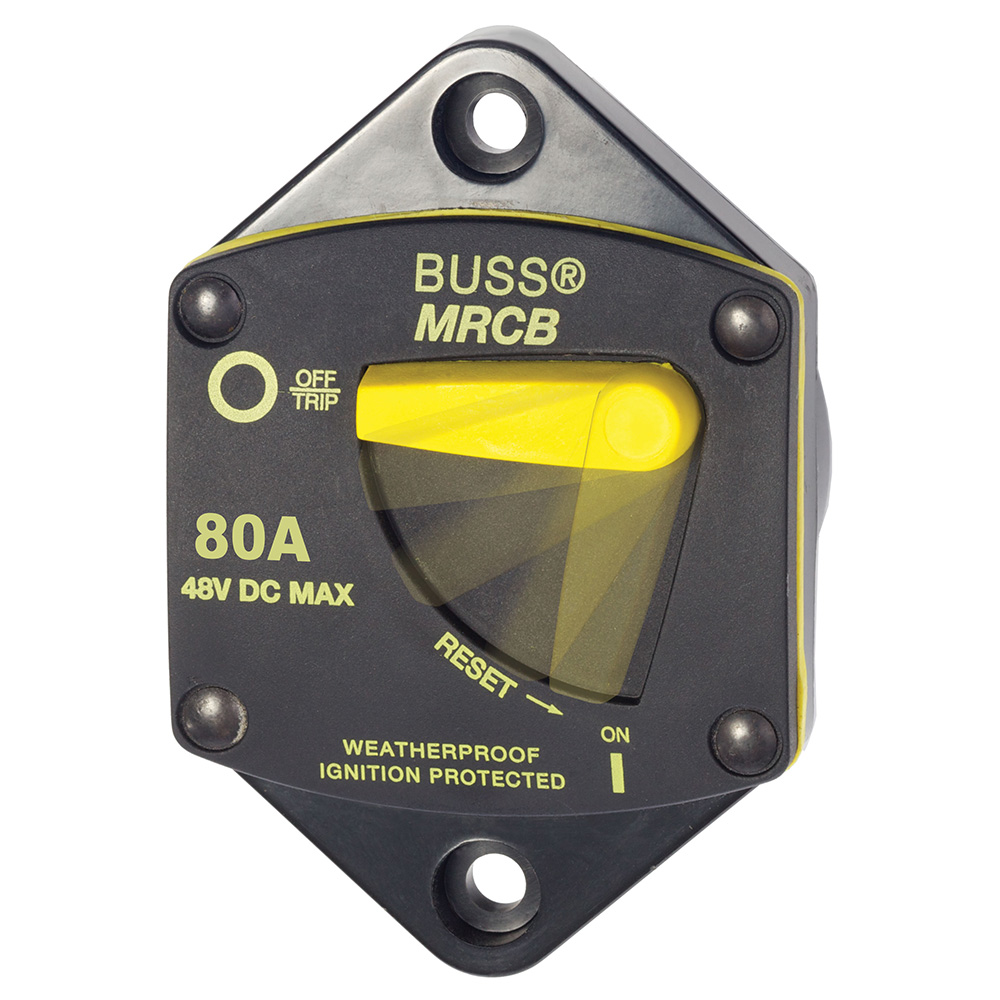

7042 187-Series Circuit Breaker - Panel Mount 80A
Features:
- Combines switching and circuit protection into a single device*
- Precise, single-lever operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Ample Clearance around terminal studs accepts heavy gauge wire lugs
- Robust 5/16 M8 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition-protected - Safe for installation aboard gasoline powered boats
Specifications:
- Amperage: 80A
- Maximum Voltage: 48V DC
- Mounting: Panel Mount
- Circuit Breaker Type: Thermally responsive Bi-metal blade
- Terminal Stud Torque: 75 in-lb (8.47 Nm)
- Interrupt Capacity: 5000A @ 14VDC, 3000A @ 28VDC, 1500A @ 48VDC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Case Material: Thermoset Polyester
- Circuit Breaker Class: Type III - switchable/manual reset - trip-free
- Mounting Hole: Accept #10 (M5) Screw
- Terminal Stud Size: 5/16" - 18
- Weight: 0.5lb (0.23 kg)
- Weight: 0.50lb (0.23 kg)
* Do not use as a switch where high inrush currents are expected.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
| Dimensions | 8" L × 5" W × 3" H |
|---|---|
| Shipping Weight | 0.47 lb |
| Country of Origin | MEXICO |
| Harmonized Code | 8536.20.00.00 |
