Blue Sea Battery Switch HD Series Single Circuit ON-OFF - (MW)
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
OH, Warehouse 4
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
4 available
$147.29
Express Checkout

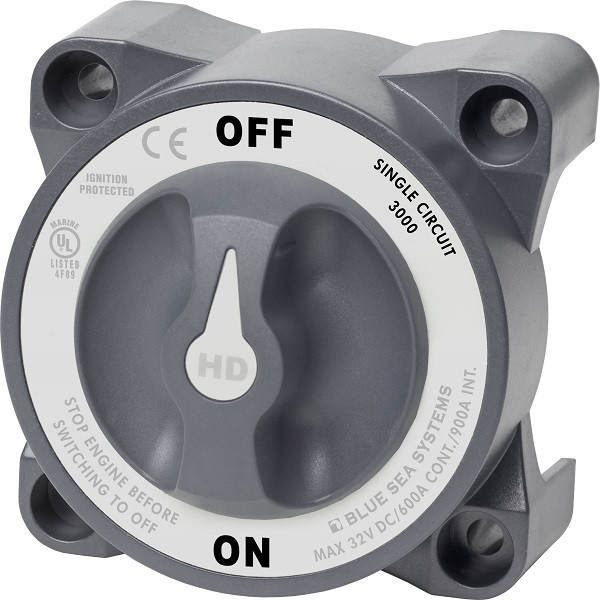

Blue Sea Systems HD Series Battery Switch Single Circuit ON/OFF
Features:
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- UL Listed - UL 1107 electric power switches
- Meets UL 1500 and SAE J1171 external ignition protection requirements
- Ignition protected - safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm2) battery cables
- Cranking Rating: 10 sec. 2,750 Amps
- Intermittent Rating: 5 min. 900 Amps
- Rating 600 Amps
- Maximum Voltage Rating 32 Volts DC

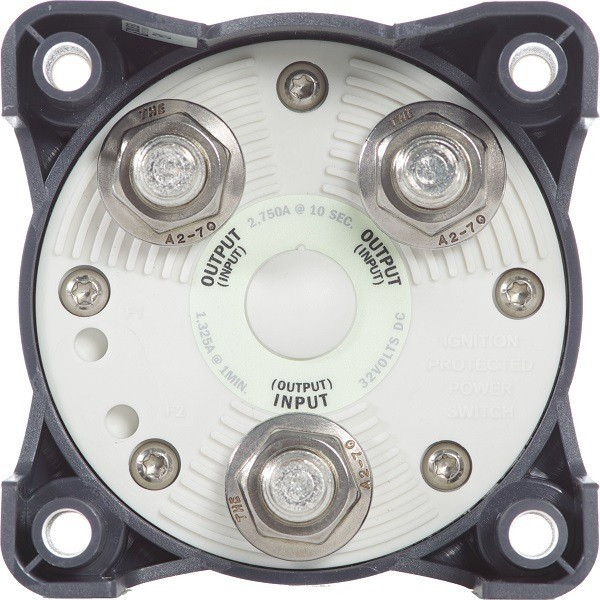

- Terminal Stud Size 1/2" (M12)
- Terminal Stud Torque 220 in-lb (24.86 Nm) max.
- Mounting Holes Accept 1/4" (M6) Screw
- Cable Size to Meet Ratings 4/0 AWG (95mm2)
- Cable Quantity to Meet Ratings Two Cables
- Cable Clearance For 4/0 AWG Cables 1.10" (27.9mm)
- Weight Lb (Kg) 1.30 (0.59)
Click to Download Blue Sea's Battery Management Wiring Schematics
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
Product Specifications
| Brand | Blue Seas |
|---|---|
| Manufacturer Part No. | 3000-BSS |
| UPC | 632085030001 |
| Dimensions | 2.9" L × 6.38" W × 8.62" H |
| Shipping Weight | 1.3 lb |
| Shipping Box | 10x10x10" |
