Blue Sea DualBus Plus 150Amp Bus Bar - 5 Gang - (MW)
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
OH, Warehouse 4
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
4 available
$46.29
Express Checkout
Blue Sea DualBus Plus 150Amp Bus Bar - 5 Gang

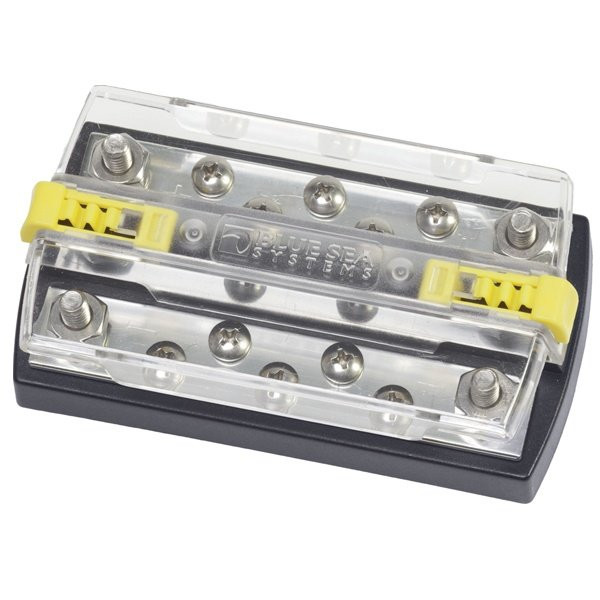

The Blue Sea DualBus Plus Bus Bar combines negative and positive buses on one block. A clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements.
Maximum Voltage: 300V AC | 48V DC
Number of Screw Terminals: 5 per bus
Number of Terminal Studs: 2 per bus
Terminal Type: #10-32 Screw | 1/4" Stud
Continuous Rating: 130A AC | 150A DC
Base Material: Reinforced Polycarbonate
Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
Cover Matieral: Clear Polycarbonate
Mounting Screw: #10 (M5)
Weight: 0.61 lb (0.28 kg)
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
Product Specifications
| Brand | Blue Seas |
|---|---|
| Manufacturer Part No. | 2722-BSS |
| UPC | 632085027223 |
| Dimensions | 1.81" L × 3.88" W × 7.88" H |
| Shipping Weight | 0.66 lb |
| Shipping Box | 6x6x12" |
