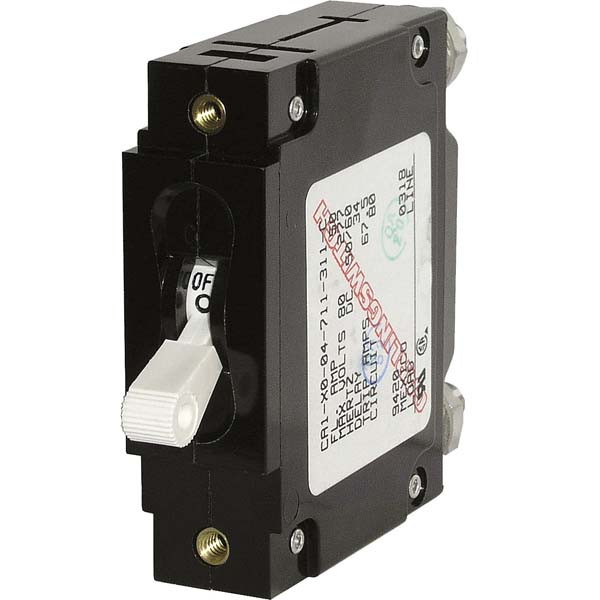

Blue Sea Systems C Series White Toggle Circuit Breaker - Single Pole
The Blue Sea C Series Circuit Breaker provides overcurrent protection for inverters, bow thrusters, and windlasses.
Features:
- Combines switching and circuit protection into a single device.
- "Trip Free" - cannot be held closed after trip
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Available in 10, 15, 20, 25, 30,50, 60, 80, 100 Amps
Specifications:
- Maximum Voltage: 240V AC | 80V DC
- Terminal Stud: 1/4-20 Tin-Plated Brass
- Terminal Stud Torque: 35 in-lb
- Interrupt Capacity: 5000A @ 125V AC | 5000A @ 240V AC | 10000A @ 80V DC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb

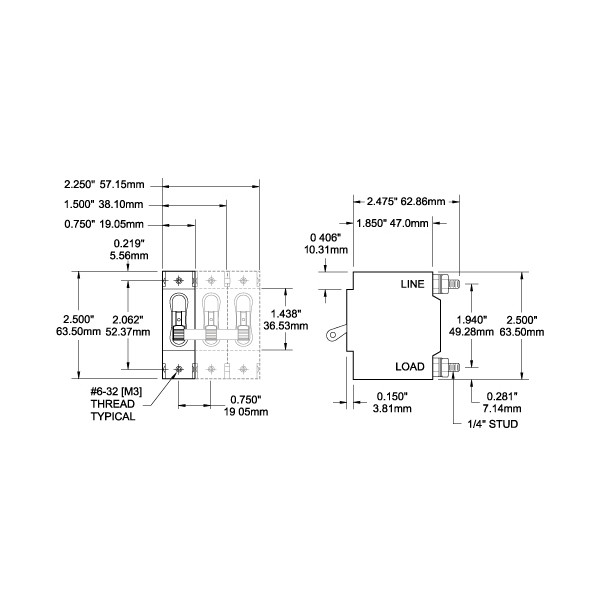

Cutout Dimensions:
Click to Download Blue Sea C Series Toggle Circuit Breaker Instructions
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
Product Specifications
| Brand | Blue Seas |
|---|---|
| Manufacturer Part No. | 7351-BSS |
| UPC | 632085073510 |
| Dimensions | 1.75" L × 2.69" W × 4.38" H |
| Shipping Weight | 0.25 lb |
| Shipping Box | 6x6x6" |
