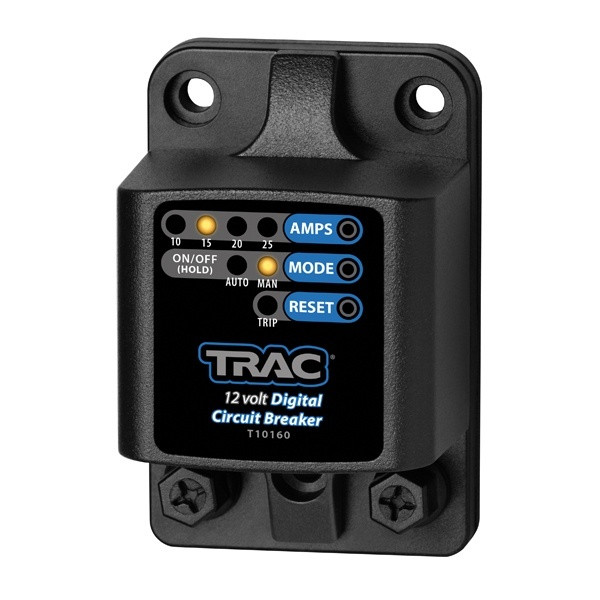

TRAC 12V Digital Circuit Breaker
The TRAC Digital Circuit Breaker measures voltage and current in real time to break the circuit at the user-selected setting. These circuit breakers also feature user selectable auto-resetting or manual reset modes. TRAC digital circuit breakers are completely sealed and waterproof for marine use.
Features:
- Digital capacity measures voltage and current in real time
- User selectable circuit break-point is illuminated with high-brightness LED
- User selectable Auto-resetting or Manual Reset modes
- Circuit interrupt LED to show when the circuit is broken
- Dedicated reset button
- Includes OFF function
- Completely sealed and waterproof
Specifications:
- 10-25 Amp Model:
- Dimensions: 3.6" H x 2.3" W x 2.3" D
- Circuit Protection in range: 10/15/20/25 amps
- Wiring: 10 gauge wire (or larger)
- Draw: Less then 25 amps
- 30-60 Amp Model:
- Dimensions: 3.6" H x 2.3" W x 2.3" D
- Circuit Protection in range: 30/40/50/60 amps
- Wiring: 8 gauge wiring (or larger)
- Draw: Less than 60 amps
Click to Download TRAC Digital Circuit Breaker Installation Instructions
