Blue Sea 12 Circuit ST Blade Fuse Block w/ Negative Bus - (MW)

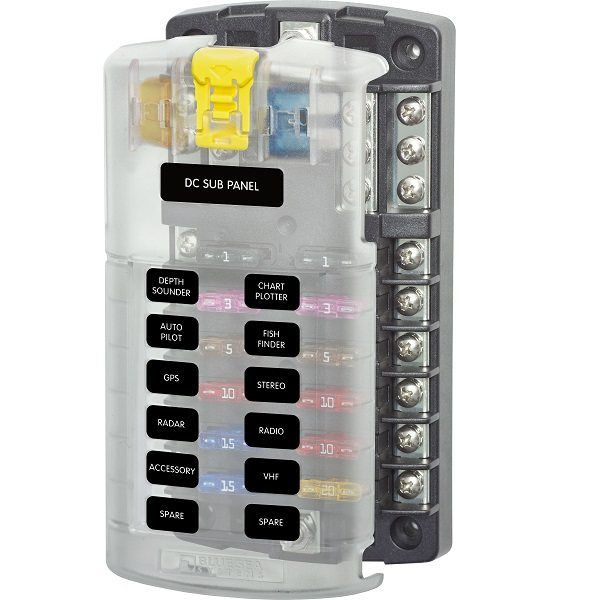

Blue Sea Systems 12 Circuit ST Blade Fuse Block with Negative Bus

Use the Blue Sea Systems ST Blade Fuse Block to consolidate branch circuits and in-line fuses. Blue Sea's ST Blade Fuse Block offers a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel.

Features:

• Can be used for 24 hour circuits
• Includes ABYC/USCG approved cover with an easy to open push button latch
• Include 20 write-on circuit labels
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Accepts ATO and ATC fast acting blade fuses
• Fuses sold separately

Specifications:

• Circuits: 12
• Maximum Amperage: 100A per block  |  30A per circuit
• Maximum Voltage: 32V DC
• Mounting: #8 Screw (M4)
• Negative Bus: #10-32 Stud
• Positive Bus: #10-32 Stud
• Recommended Torque: 24 in-lb
• Screw Terminal Type: #8-32 Screws with captive star lock washer
• Screw Terminal Torque: 15 in-lb

Click to Download Blue Sea 12 Circuit ST Blade Fuse Block Wiring Diagram
