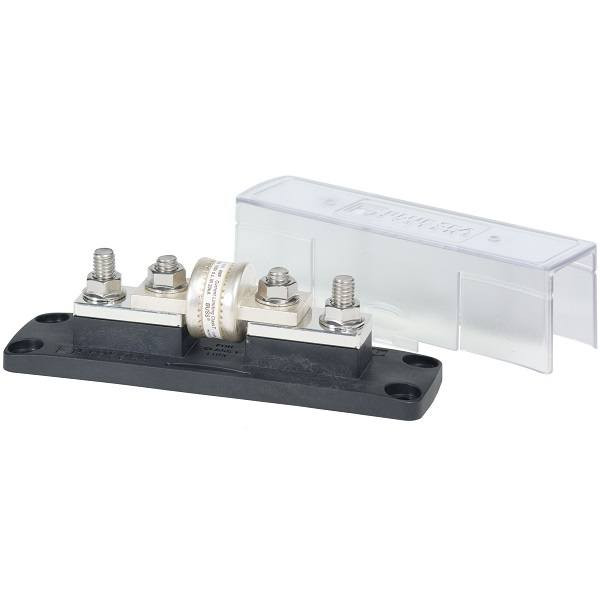

Blue Sea Systems Class T Fuse Block w/ Insulating Cover - 225 to 400A
- The fuse system recommended by most inverter manufacturers for high speed response to short circuits
- Clear insulating cover, satisfies ABYC/USCG requirements
- For use on systems up to 160 Volts DC
- Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG
- Large heat dissipating tin-plated copper mounting blocks
- Two # 8 accessory terminals located on each endSpecifications
Specifications:
- Maximum Amperage: 400A
- Maximum Voltage: 160V DC
- Fuse Mounting Blocks: Tin-Plated Copper
- Maximum Cable Size: 4/0 AWG
- Maximum Torque: 190 in-lb (21.47 Nm)
- Mounting Holes: Accept 1/4 (M6) Screw
- Terminal Stud Size: 3/8-16 (M10)
- Weight: 1.10lb (0.5 kg)
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
Product Specifications
| Brand | Blue Seas |
|---|---|
| Manufacturer Part No. | 5502-BSS |
| UPC | 632085055028 |
| Dimensions | 3" L × 9" W × 7.25" H |
| Shipping Weight | 1.1 lb |
| Shipping Box | 10x10x10" |
