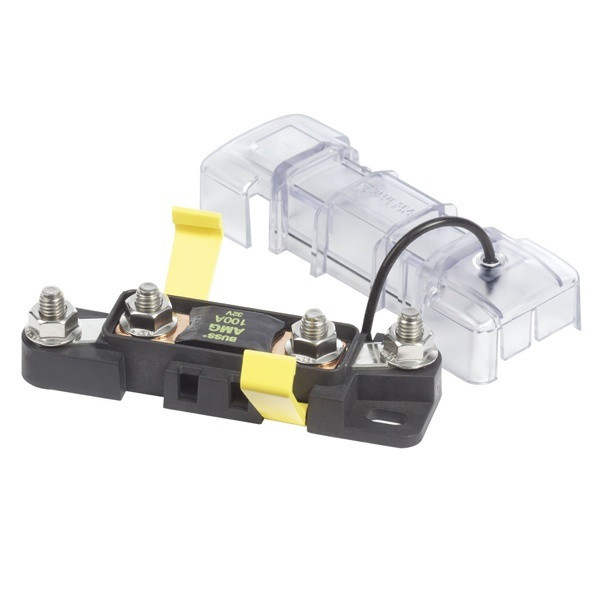

Blue Sea MEGA / AMG Safety Fuse Block
The Blue Sea MEGA/AMG Safety Fuse Block can be used on high amperage circuits on almost any boats, including gasoline and diesel powered boats. This fuse block is ignition protected and features a sealed cover to protect the fuses from harsh marine environments. The insulating cover satisfies ABYC and USCG insulation requirements. Accepts Blue Sea Systems square format standard or custom labels.
Features:
- Ignition protected
- Insulating cover meets ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- Fuses sold separately
Specifications:
- Maximum Amperage: 300 A
- Maximum Voltage: 32V DC
- Stud Size: M8 x 1.25
- Recommended Stud Torque: 120 in-lb
- Ring Terminal Size: M8
- Weight: 0.15 lb.
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
Product Specifications
| Brand | Blue Seas |
|---|---|
| Manufacturer Part No. | 7721-BSS |
| UPC | 632085077211 |
| Dimensions | 7.75" L × 2" W × 4" H |
| Shipping Weight | 0.15 lb |
| Shipping Box | 6x6x12" |
