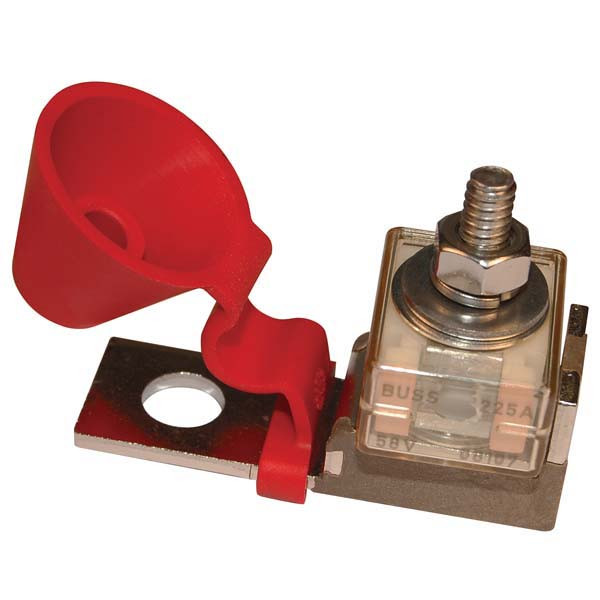

Blue Sea Terminal Fuse Block 30 to 300A
The Blue Sea MRBF Terminal Fuse Block is compact and high-amp, appropriate for DC main, inverter, windlass and bow thruster circuit protection. This fuse block is provides high current protection in tight space constraints.
Features:

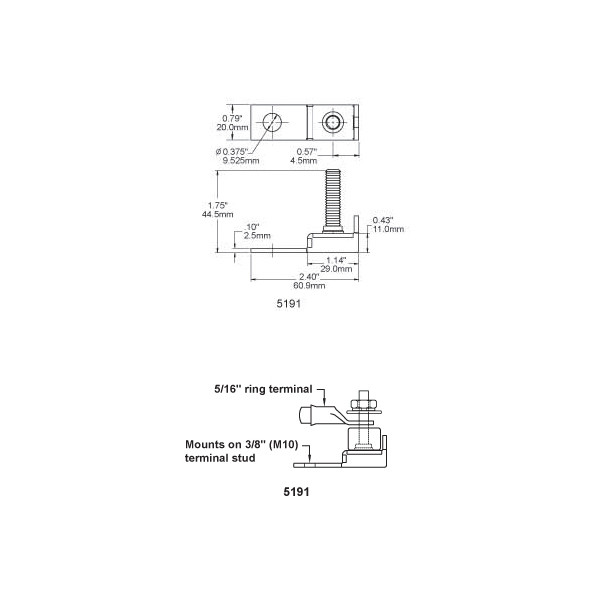

- Isolated stud design uses standard M8 hardware and permits stacking of terminals
- Insulating cap prevents accidental shorts
- Accepts 5/16" ring terminals
- Mounts on 3/8" terminal studs
Specifications:
- Maximum Amperage: 300A
- Maximum Voltage: 58V DC
- Maximum Torque: 75 in-lb
- Terminal Stud: M8
- Weight: 0.16lb
This is for the fuse holder only. Fuses sold separately
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
Product Specifications
| Brand | Blue Seas |
|---|---|
| Manufacturer Part No. | 5191-BSS |
| UPC | 632085051914 |
| Dimensions | 0.94" L × 2.69" W × 4.38" H |
| Shipping Weight | 0.16 lb |
| Shipping Box | 6x6x6" |
