Sea Dog Toggle Switch With Lighted Tip - (MW)
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
Express Checkout

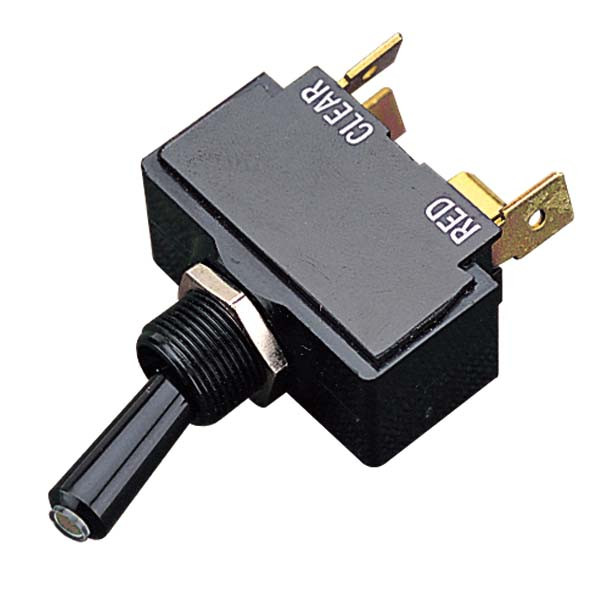

Sea-Dog Light Tip Toggle Switch
Sea Dog Light Tipped Toggle Switch is constructed of stamped brass, injection molded nylon, and polycarbonate for excellent durability in marine environments. Toggle bat features a lighted tip which illuminates white in the off position and red in the on position. Fits panels up to 1/4" thick and requires 15/32" mounting hole. Rated 15 Amps at 12 Volts DC. The locking ring and lever seal increase water penetration resistance.
Product Features:
- For use in the marine environment
- Stamped Brass/Injection Molded Nylon, Polycarbonate
- 12 volt
- 15 AMP
- Use for replacement or new installations
- Lighted tip toggle switches light up white in the off position and red in the on position
Click here to download Sea Dog Light Tip Toggle Switch Installation Instructions
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov

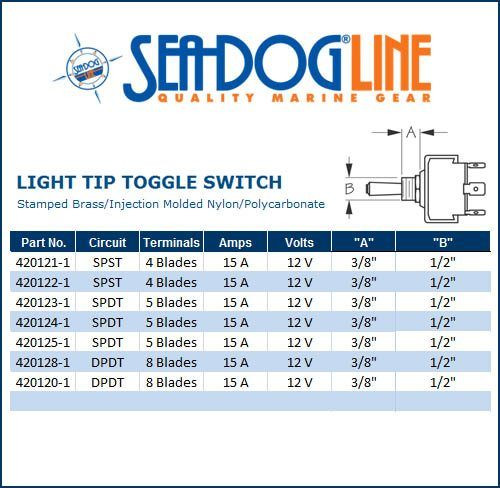

Product Specifications
| Brand | Sea Dog Marine |
|---|---|
| Manufacturer Part No. | 420121-1 |
| UPC | 035514420006 |
| Dimensions | 4.94" L × 1.88" W × 1.25" H |
| Shipping Weight | 0.06 lb |
| Shipping Box | 16x10.5x2" |
