Blue Sea Water Resistant Circuit Breaker Panel - 8 Position - (MW)
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
Express Checkout

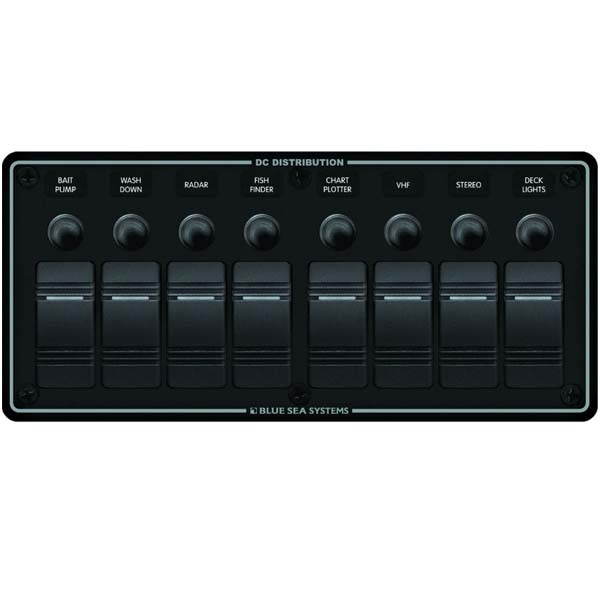

Blue Sea Water Resistant Circuit Breaker Panel - 8 Position

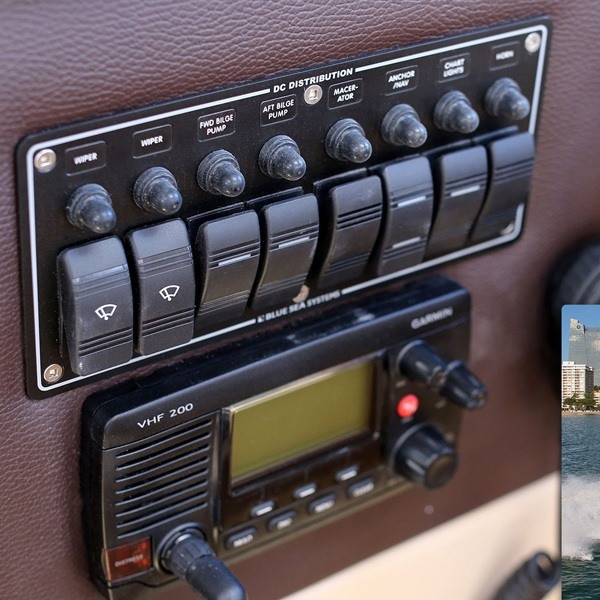

This Blue Sea Circuit Breaker Panel is designed for flybridge and open cockpit applications. Panel front is rated IP66 and is protected against powerful water jets; the panel is also ignition protected, so it is safe for installation aboard gasoline powered boats.
Features:
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switch
- Watertight mounting gasket
- Push button reset-only circuit breakers with waterproof boots
Specifications:
- Positions: 8
- Nominal Voltage: 12V DC | 24V DC
- Panel Cumulative Rating: 90A
- Switch Rating: 20A @ 12V DC | 15A @ 24V DC
Dimensions: 4.25" Height x 9.37" Width x 3.25" Depth
Click to Download Blue Sea 8371 Circuit Breaker Panel Instructions
Click Here to Download Blue Sea 8371 Circuit Breaker Panel Cutout Template
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
Product Specifications
| Brand | Blue Seas |
|---|---|
| Manufacturer Part No. | 8371-BSS |
| UPC | 632085083717 |
| Dimensions | 4.29" L × 11.5" W × 8.43" H |
| Shipping Weight | 1.7 lb |
| Shipping Box | 10x10x15" |
