U-Bolt Pad Eye - 8mm Diameter - 5/16" - 100mm Length - 3-15/16"
Features:
- Entirely drop forged product with high-quality stainless steel
- Outstanding working and breaking loads
- For any fastening applications (shrouds, lifelines, blocks...)
- Delivered with bolts and counter-plate
- Max tightening torque: 18 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 5290 / (kg) 2400
- Breaking load: (lb) 10580 / (kg) 4800
- Weight: (lb) 0.28 / (g) 127

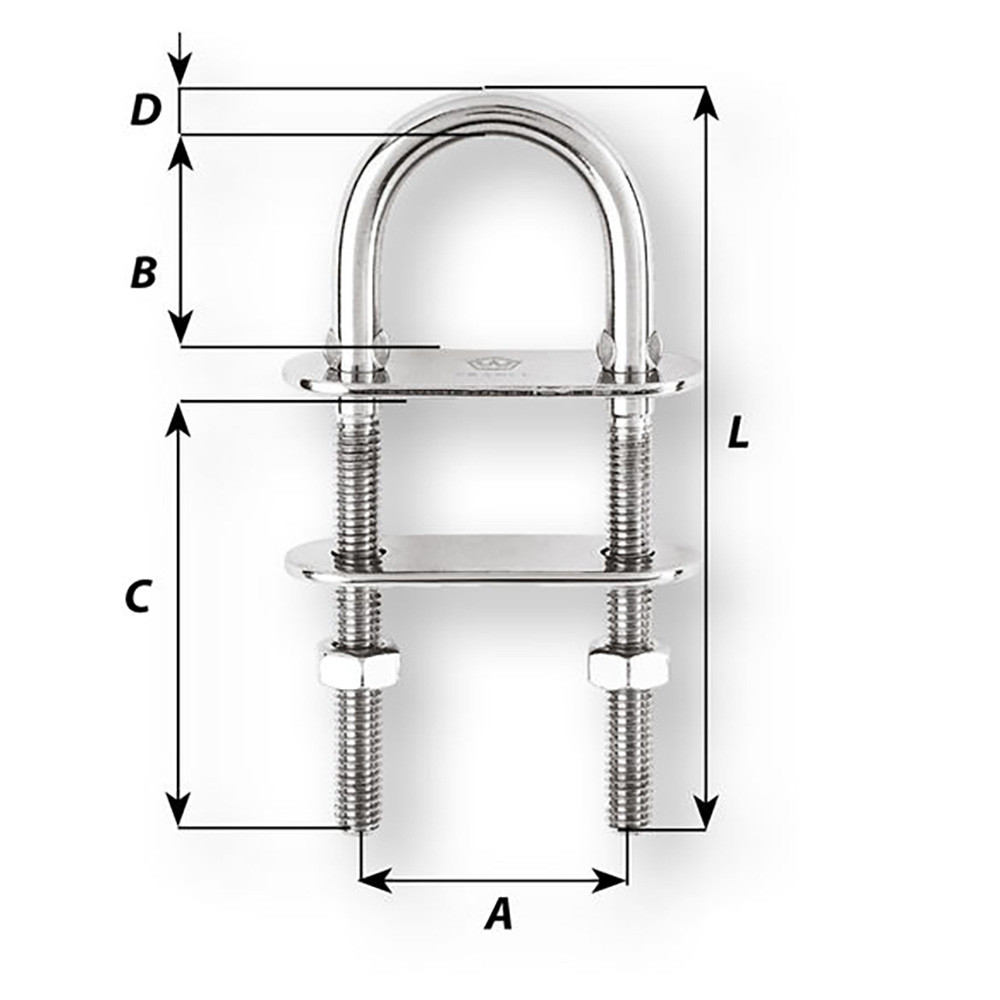

Dimensions:
- A: (inch) 1 27/64" / (mm) 36
- B: (inch) 1 3/16" / (mm) 30
- C: (inch) 2 23/64" / (mm) 60
- D diameter: (inch) 5/16" / (mm) 8
- Length: (inch) 3 15/16" / (mm) 100
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
