TRAC Macerator Pump - (MW)

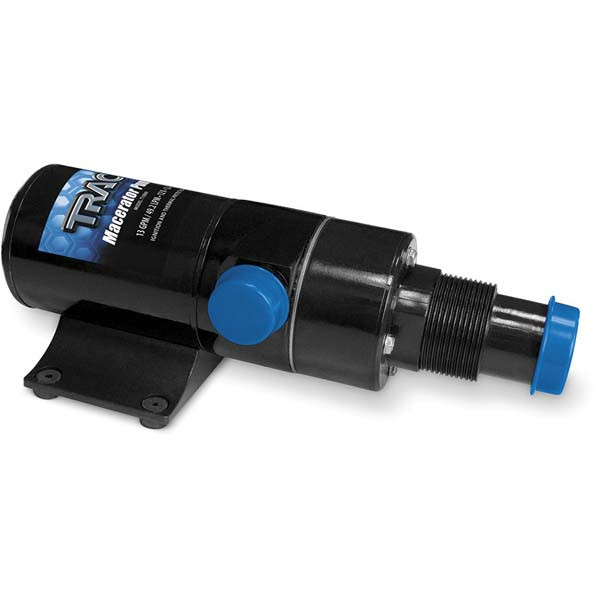

TRAC 69390 Macerator Pump

The TRAC 69390 Macerator Pump is designed specifically for sanitation waste and fish box evacuations. This high-powered pump incorporates a quality motor with a seamless motor tube and O-ring sealed motor end frames. The 13 gallons per minute flow rate conveniently empties any tank in minutes while the high-speed rotary cutter shreds waste efficiently, producing a higher discharge capacity. Additional features include an innovative internal housing design, premium impeller, and a heavy-duty armature shaft seal. The TRAC Macerator Pump is ignition protected and is self priming up to 5 feet.

Pump switch must be near pump and tank so operator can hear pump running. When tank is empty, pump will get louder with a high pitch sound. Immediately turn pump off, or damage to impeller and housing will occur.

Do not run pump dry for more than 15 – 20 seconds

Features:

• O-ring sealed motor end frames
• Heavy duty armature shaft seal
• Manual turn key with rear O-ring seal
• Innovative internal housing design
• Seamless motor tube
• Dual blade design
• Premium impeller
• Ignition protection
• 3 year warranty

Specifications:

• 13 GPM (49.2 LPM)
• Self priming to 5'
• 1.5" Intake hose
• 12V DC

Replaces old TRAC part T10069

Click Here to Download TRAC Macerator Pump Manual
