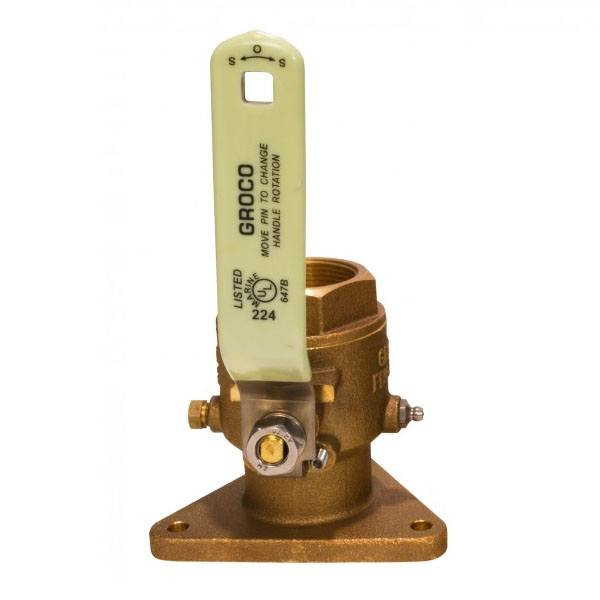

Groco FBV Series Tri-Flanged Ball Type Seacock
Groco FBV Series Ball-Type Seacocks are manufactured for full flow and feature a triangular base. The patented field reversible handle allows you to select the closed position for orientation that best suits the installation. The handle has a square hole to accept standard ratchet, to help reach valves in hard-to-reach locations and ease actuation of difficult-to-operate valves.
Features:
- Base bolt pattern matches most popular brands, making retrofitting easy
- Stainless steel handle and hardware
- Chrome plated solid brass ball
- C83600 bronze construction
- PTEF seats and seals
- Bonding attachment on base
Note: 1-1/4" sizes and larger include on grease zerk fitting (can be used for lubrication or draining)
Specifications:
| Part Number | Thread Bottom NPS | Thread Top NPT | A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | Weight |
| FBV-750 | 3/4" | 3/4" | 6.14" | 3.92" | 2.40" | 3.12" | 5/16" | 1.9 lbs. |
| FBV-1000 | 1" | 1" | 6.98" | 4.40" | 2.60" | 3.38" | 5/16" | 2.6 lbs. |
| FBV-1250 | 1-1/4" | 1-1/4" | 7.12" | 4.85" | 2.70" | 3.62" | 5/16" | 3.0 lbs. |
| FBV-1500 | 1-1/2" | 1-1/2" | 8.23" | 5.77" | 3.15" | 4.50" | 5/16" | 4.4 lbs. |
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
Product Specifications
| Brand | Groco |
|---|---|
| Manufacturer Part No. | FBV-750 |
| UPC | 742985141230 |
| Dimensions | 3.12" L × 3.5" W × 6.5" H |
| Shipping Weight | 1.9 lb |
| Shipping Box | 6x6x12" |
