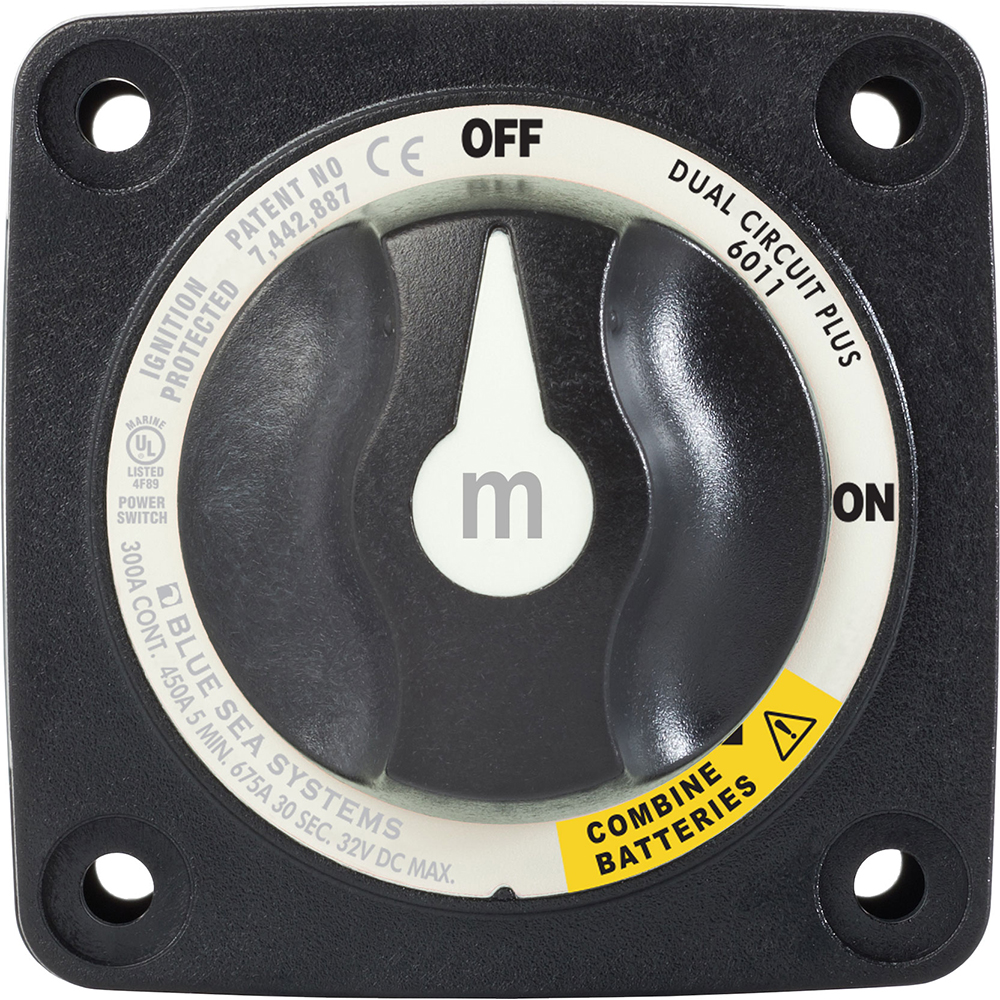

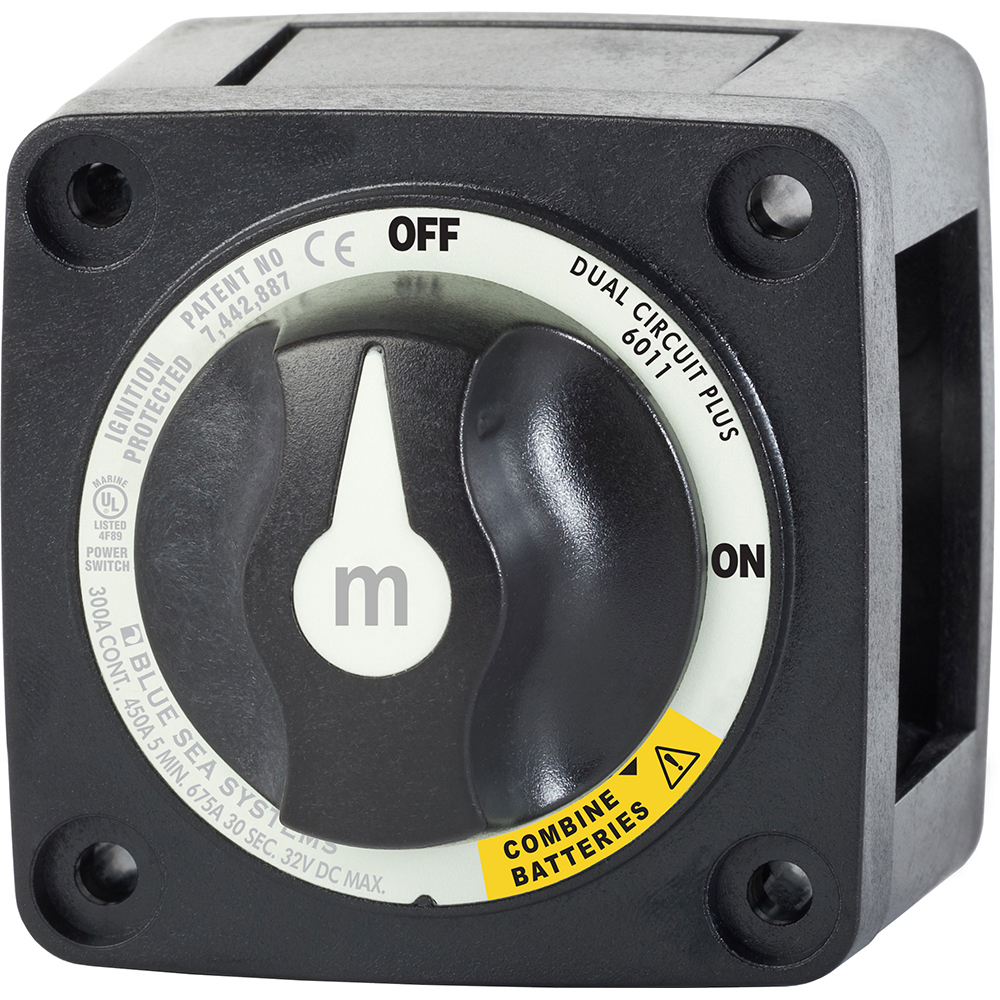

Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
OH, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$65.99
Express Checkout
m-Series Mini Dual Circuit Plus Battery Switch - Black
Simultaneously switches two isolated battery banks or combines battery banks to all loads.
Make before break contact design allows switching between battery banks without power interruption.
Switch Type: Dual Circuit Plus
Color: Black
Switch Positions: 3
Battery Combine: Yes
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Continuous Rating : 300A
Intermittent Rating : 450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw

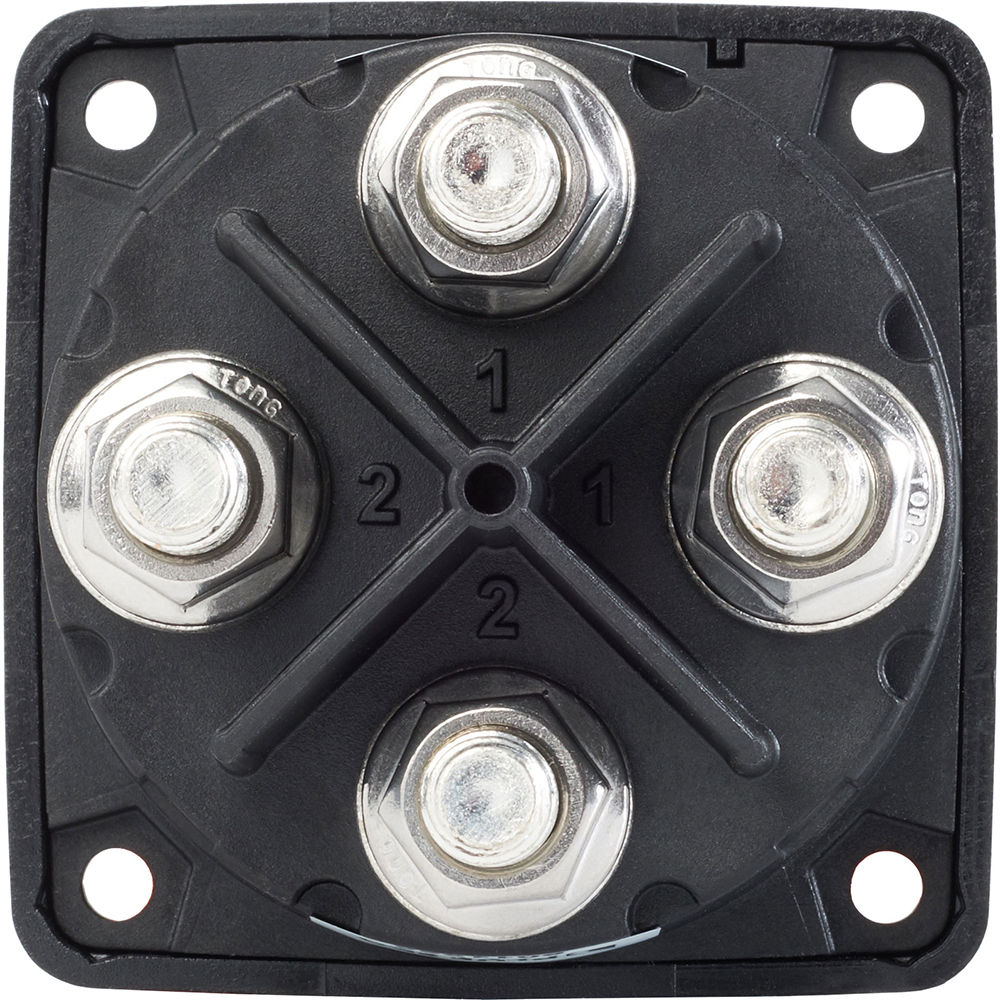

Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.80lb (0.36 kg)
Simultaneously switches two isolated battery banks or combines battery banks to all loads.
Make before break contact design allows switching between battery banks without power interruption.
Switch Type: Dual Circuit Plus
Color: Black
Switch Positions: 3
Battery Combine: Yes
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Continuous Rating : 300A
Intermittent Rating : 450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.80lb (0.36 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
| Dimensions | 7" L × 4" W × 1" H |
|---|---|
| Shipping Weight | 0.87 lb |
| Country of Origin | UNITED STATES |
| Harmonized Code | 8535.30.00.00 |
Documentation
| Owner's Manual | Download PDF |
|---|
