Quick Solenoid Box Kit - 150A - 12V
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$498.82
Back to: Quick

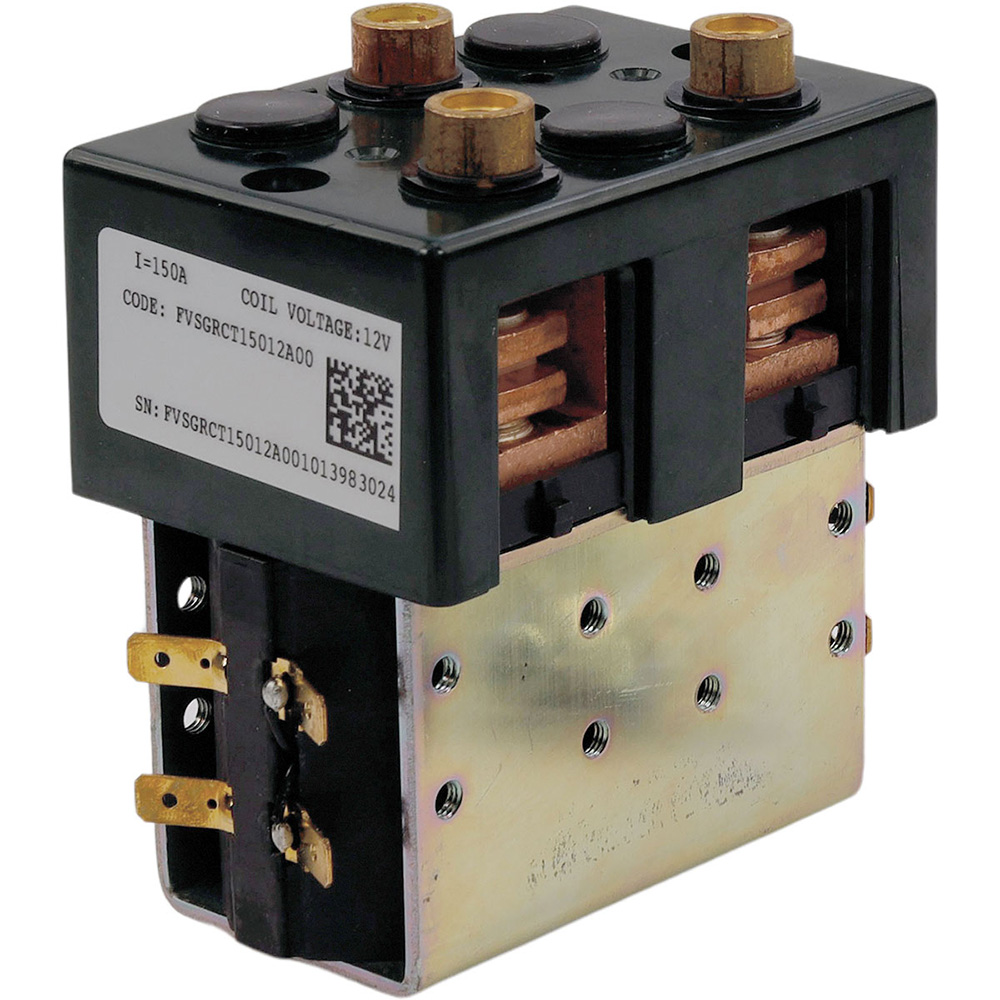

Solenoid Box Kit - 150A - 12V
Single-direction solenoid box kit, designed primarily for Quick BTQ series bow and stern thrusters.
Specifications:
- Voltage & Amperage: 12V DC / 150 Amps
- Contactor Type: Single pole, single throw (non-reversing)
- Ingress Protection: IP66 waterproof casing (excluding exposed terminals)
- Motor Capacity: Handles thruster motors up to 3.3 kW
Direct replacement for the following Quick BTQ thruster models: BTQ 125-30 / BTQ 125-40, BTQ 185-55 / BTQ 185-65 / BTQ 185-75 / BTQ 185-85
While optimized for bow thrusters, these heavy-duty solenoids are also suited to single-direction electrical marine components including:
- Anchor windlasses
- Electric capstans
- High-current winch motors
Product Specifications
| Dimensions | 7" L × 7" W × 4" H |
|---|---|
| Shipping Weight | 3.9 lb |
| Country of Origin | ITALY |
| Harmonized Code | 8511.90.6040 |
